ShellCool Mechanical Seal Heat Exchanger
Optimize Performance, Ensure Reliability
The ShellCool heat exchanger is a top-of-the-line solution for process /barrier fluids in seal applications. The ShellCool heat exchanger system can be applied with API 682 conforming Flush Plans 21, 22, 23, 41, 53B, 53C, 54, and 55.

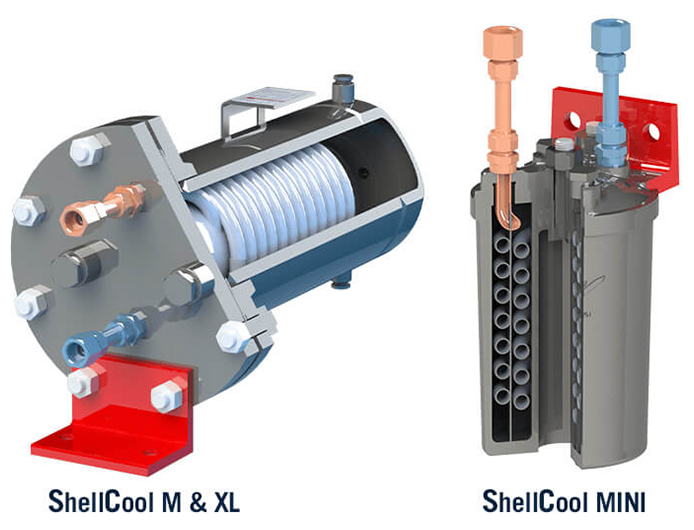

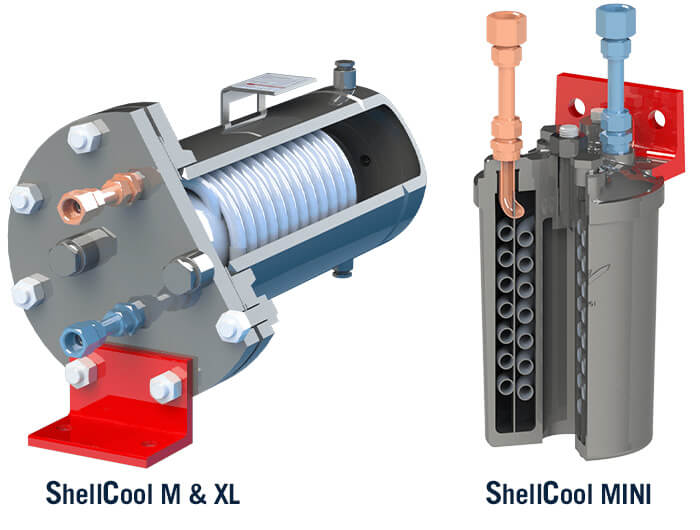

The ShellCool heat exchanger provides exceptionally effective cooling and lubrication to critical mechanical seal components, eliminating common failures from high process temperatures and friction.
Our heat exchanger will keep your processing equipment operating longer with fewer failures and requires almost no maintenance. Protect your investment with ShellCool to save time and money for your plant.
Design Features & Benefits
Specifications
Materials of Construction
| Shell: | CS*, 304L, 316L, per spec |
| Tube: | 316L*, CS, 304L, exotics including Inconel or Hastelloys |
| Bracket: | CS |
| Fittings: | 316L or to match tube material |
| Gasket (M, XL): | Spiral Wound Flexitallic CGI |
| O-Rings (Mini): | FKM Standard, FFKM Available |
Note: *Standard Materials, others available by request.
Operating Parameters
| Coolant Media: | Water or 50/50 Ethylene Glycol/Water |
| Temperature: | 700 ºF (370 ºC) max inlet |
| Coolant Flowrate (API 682): | M & XL: 9–14 GPM (0.55-0.90 L/s) Mini: 4–6 GPM (0.25-0.40 L/s) NOT TO EXCEED 5–8 FT/S VELOCITY IN ALL CASES |
| Tube Working Pressure: | M & XL: 1500 psig (103 bar) @ max temp Mini: 3072 psig (212 bar) @ max temp |

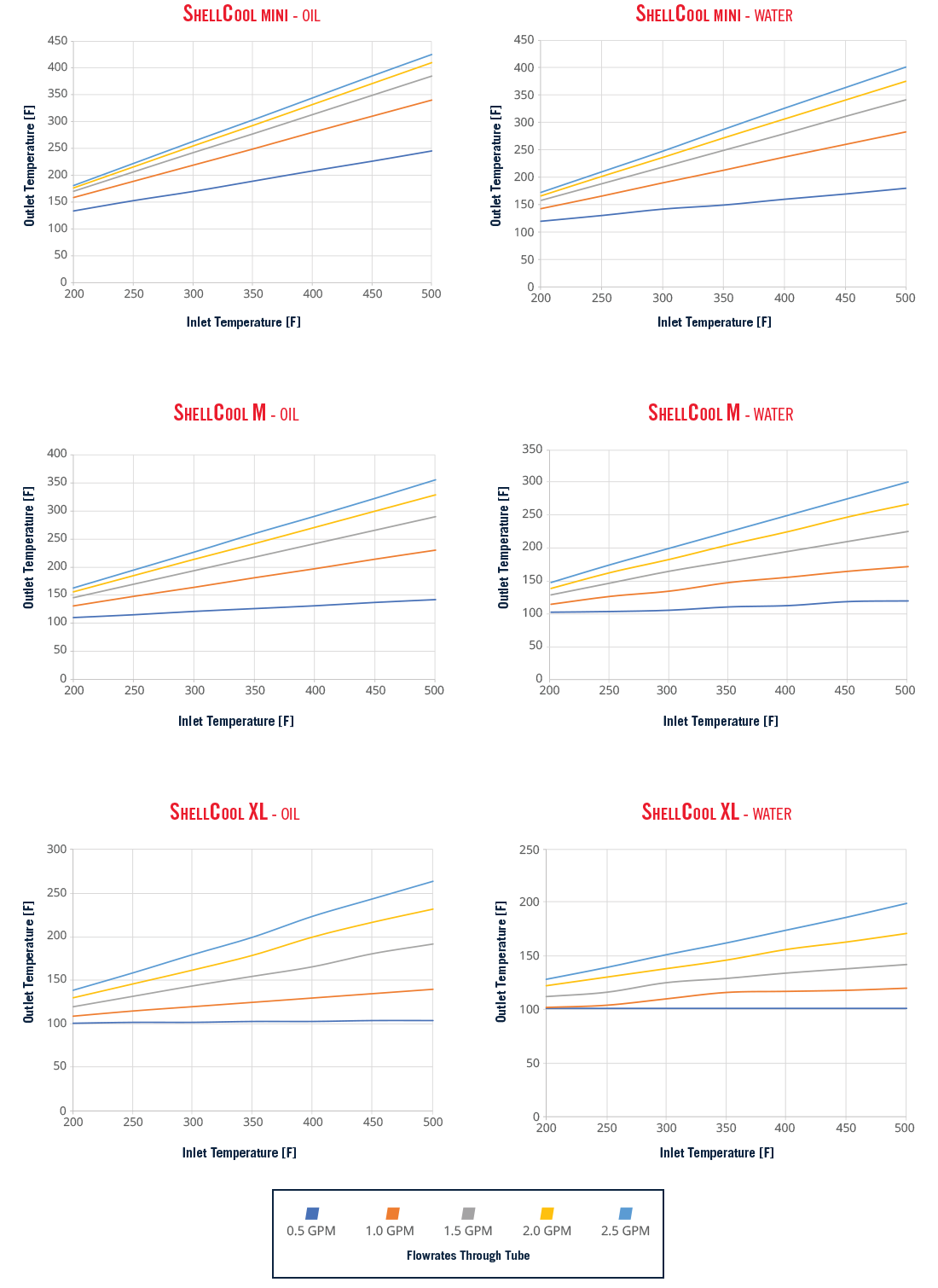

Performance Curves
NOTE: All curves modeled with 90 ºF (32 ºC) coolant at flowrate operating parameters specified. The information provided is to be used as a selection guide only. Each application should be reviewed in detail as specific properties of process fluids and environmental variables may have a significant effect on cooler performance. Information subject to change without notice.
Downloads
For more information on the ShellCool
Download our Data SheetQuote Request
Depending on your specific needs and application, Flexaseal can help you identify the ideal products. Contact us to tell us about your needs and request a quote.
