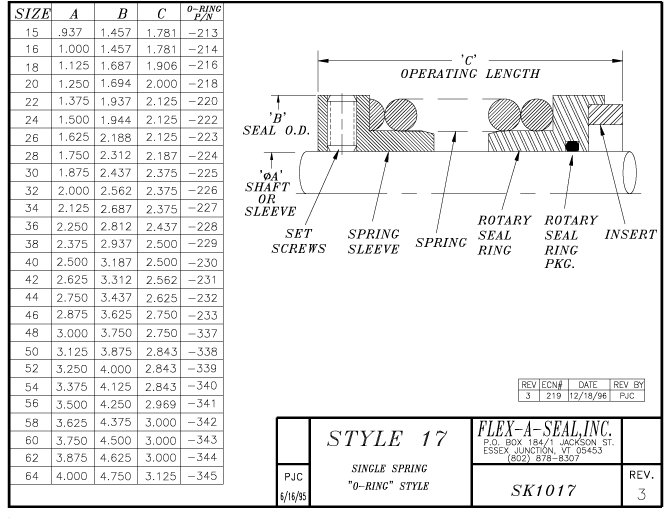

Mechanical Seal Style 17

Sturdy Single Spring Component Seal

The single spring design to keep the sealing faces in contact and positively transmits the drive evenly 360º around the full circumference of the rotary face. This is accomplished by specially designed ends of the spring, which provide an interference fit. Then as the shaft rotates the spring ends further increase their grip. This compression spring is wound either right or left hand depending on shaft rotation.

Mechanical Seal Style 17

Features

  • Non-clogging design
  • Simple assembly
  • Can handle more axial movement
  • Unbalanced design ideal for low pressure applications
  • Available in inch and metric sizes
  • Standard 316 stainless steal metal parts with Monel™ & Hastelloy® C276 options available
  • Carbon, nickel-bound tungsten carbide, silicon carbide and bronze faces available
  • Cartridge design available (Mechanical Seal Style 57)

Specifications

Operating Parameters

Max Temp: 400°F (204°C)
Max Pressure: 150 PSI (10 bar)
Max Speed: 4500 FPM (22 m/sec)

Note: Max Temperature / pressure / speed indicate operating extremes independently and do not imply the seal will function at these extremes at the same time. Contact Flexaseal Engineered Seals and Systems, LLC if in doubt.
